La Leona Project

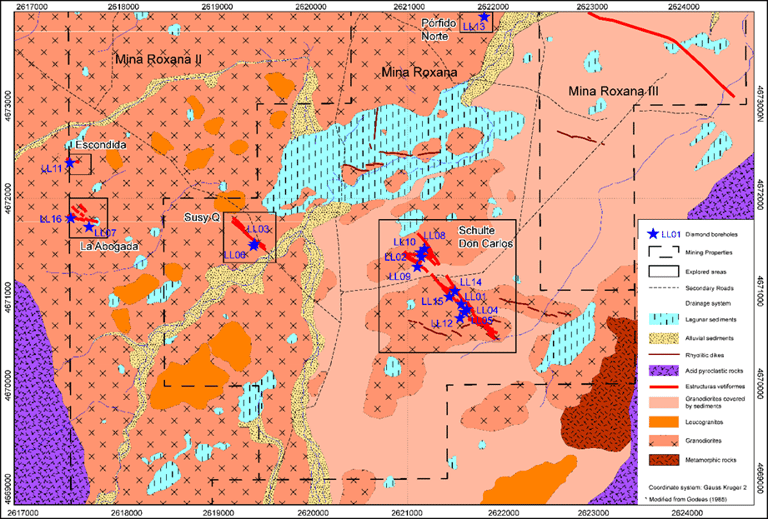

La Leona project is located about 30 km east of the Tres Cerros locality, in the center-east of the Deseado Massif. It comprises three mining properties covering a total area of 3,000 ha. The geological features of interest in the project are varied, including quartz veins, stockworks, and volcanic dikes and domes, but also granitic and pyroclastic rocks with disseminated pyrite and quartz veinlets.

The most relevant veins were named Don Carlos, Schulte, Susie Q, La Abogada,

and La Gerenta, but there are other minor veins. All of them, occur within granites of the La Leona Formation (Jurassic), surrounded by alteration zones with clays and limonite. The veins are predominantly of white and some gray quartz, although locally they have carbonates and barite. Both, in the veins and their host rocks, there are several other minerals, including abundant sulfides such as chalcosite, covellite, pyrite, chalcopyrite, bornita, galena, sphalerite, and molybdenite, and also specularite, malachite, and scarce azurite.

The veins show breccias and a variety of quartz textures like banded, massive, comb, sacharoidal, and vuggy. The maximum width of the veins (including veinlets in the host rock) is 3.45 m, which is observed in the Don Carlos and Schultz veins; but in the other sectors, the veins are narrower (~50 cm). Most of the veins dip about 68° to the SW, some are sub-vertical, and a few dip to the NE. Their azimuths vary between 280° and 330°.

At surface, the veins are discontinuous, showing individual outcrops with maximum length of 20 m. The longest vein is Don Carlos, outcropping intermittently along about 1200 m, while the Schultz vein has an inferred length of about 900 m, and the Susie Q vein outcrops intermittently along 350 m.

Initially, Fomicruz explored the area at the ground surface level, mapping several veins, opening, mapping, and sampling about 30 trenches, and collecting more than 200 rock samples. These samples show high concentrations of precious and base metals. The gold and silver concentrations reach 12.5 g/t and 2460 g/t respectively, and several samples returned concentrations of Au above 1 g/t, and of Ag above 60 g/t. This occurs mainly in the Schulte, Don Carlos and La Abogada veins. The concentrations of some pathfinder elements are high; Hg and Bi reach 52 ppm and 1790 ppm respectively, while both As and Sb showed concentrations above 10000 ppm.

Then, the Company drilled 16 diamond boreholes (~1300 m). Most of the boreholes were shallow; only two of them were planned to intercept the veins at more than 100 m vertical depth. The samples extracted from boreholes, did not show so widespread high concentrations of precious metals as at surface; however, they returned strong gold anomalies of up to 1 g/t, and several returned high concentrations of Ag (up to 123 g/t).

Next exploration activities will try to test a potential decrease in precious metals contents with depth, this should include resampling and assaying part of the drill cores to confirm the previously determined concentrations, since samples from boreholes were analyzed by Fomicruz's in-house facilities, while surface samples were analyzed by an external certified laboratory; also a possible supergene enrichment should be investigated.
